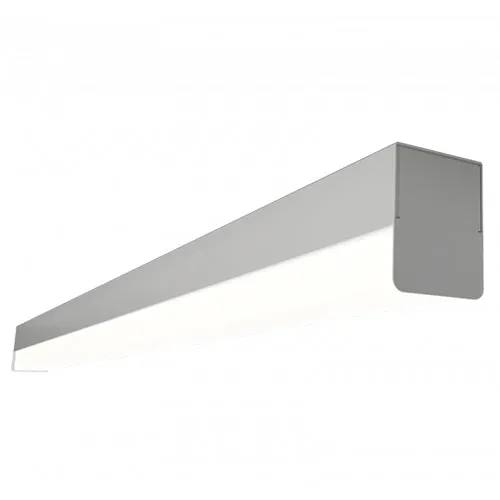

Advantage Environmental Lighting PLSW Suspended, Surface & Wall
The PLSW is a beautifully designed linear wrap that is available in continuous runs. Designed for suspended, surface, and wall mounting, the PLSW makes for a simple, yet aggressively styled luminaire. The PLSW emits a beautiful uniform light output and utilizes the latest in LED technology.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications, 0-10V dimming driver included standard. Long-life LED system rated for >100K life hours (L70 @ 50°C). Complies with federal energy efficiency standards.
OPTICAL SYSTEM
Single-piece (up to 8´ lengths) extruded acrylic, 100% recyclable.
LISTINGS
UL listed for damp locations. Manufactured in the USA.
MOUNTING
Surface mounted to walls or ceilings, or suspension mounting.
HOUSING
Constructed of heavy gauge USA steel. Marine grade .063" aluminum construction available with option "ALH".
LED
LEDs available in 3000K, 3500K, 4000K and 5000K with CRI > 82. Projected life is >100,000 hours at 70% lumen maintenance.
WARRANTY
5 - Year Limited Warranty.
| PLSW440SSWM: 4' Square 13.2W 2024L 4000K Surface or Wall Mount | PLSW440MSWM: 4' Square 20.4W 2836L 4000K Surface or Wall Mount | PLSW440HSSWM: 4' Square 27.6W 3860L 4000K Surface or Wall Mount | PLSW440HMSWM: 4' Square 41.2W 5872L 4000K Surface or Wall Mount | PLSW840SSWM: 8' Square 26.4W 4048L 4000K Surface or Wall Mount | PLSW840MSWM: 8' Square 40.8W 5672L 4000K Surface or Wall Mount |
| PLSW840HSSWM: 8' Square 55.2W 7720L 4000K Surface or Wall Mount | PLSW840HMSWM: 8' Square 82.4W 11744L 4000K Surface or Wall Mount |
